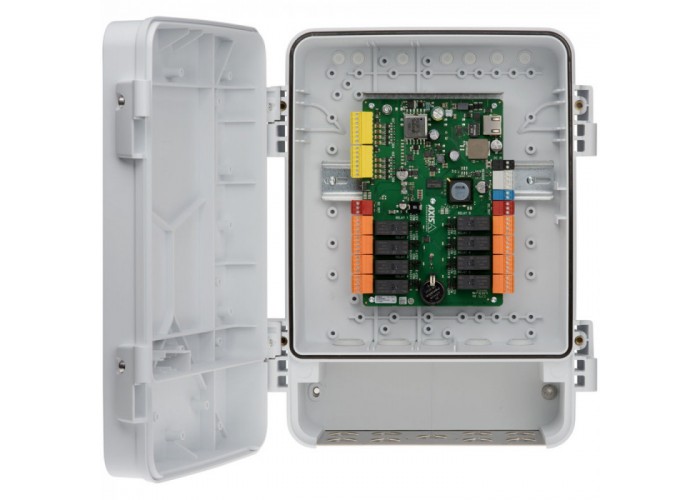

Модуль Axis A9188-VE (0831-001)

AXIS A9188-VE сетевой релейный модуль поставляется с AXIS T98A15-VE делая его пригодным для внешнего использования, антивандальным и соответствующим UL294 стандарту. Благодаря 8 конфигурируемых вводам/выводам и реле, его открытая платформа обеспечивает высокий уровень интеграции с AXIS A1001 и другими системи. 8 портов ввода/вывода с контролируемыми входами и 8 тип-C реле ; Питание 12 или 24 В постоянного тока ввода/вывода или PoE+; Open API, поддержка VAPIX, ACAP ; Используется c Axis Camera station или ПО сторонних производителейModule Digital I/O 8 x I/O, configurable as input, supervised input with analogread-out or output Digital Input: 0 to 40 VDC maximum, possible to supervise between 0-12 V (4 states) Digital Output: 0 to 40 VDC maximum, open drain, 100 mA maximum Relays 8 x form-C relays, NO/NC contacts, 1 A maximum, 48 VDC, 30 VDC maximum outdoors Security Password protection, IP address filtering, HTTPS encryption, IEEE802.1X network access control, digest authentication Supported Protocols IPv4, IPv6, HTTP, HTTPS, TLS, QoS layer 3 DiffServ, FTP, SFTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS Application Programming Interface Open API for software integration including VAPIX Tamper Detection Dedicated tamper input for external tamper contact(s) Event History 30,000, first in, first out (FIFO) Event Action Notification via email, HTTP, HTTPS and TCP, External output port, status LED Event Trigger Tamper detection, network lost, configuration, event logger, hardware, input signal, schedule, system, time, supervised inputs (4 states), relays and outputs, heartbeat lost Sustainability PVC-free Software Configuration and basic management through Internet Explorer, Firefox, Chrome, or Safari Memory 256 MB RAM, 256 MB flash Power Input 8-28 VDC, 26 W maximum or PoE IEEE 802.3af Type 1 Class 3 or IEEE 802.3at Type 2 Class 4 Power Output 12 and 24 VDC Maximum power out shared between 12 and 24 VDC outputs: PoE Class 3: 3.6 W PoE Class 4/DC Input: 12 W Connectors RJ45 10BASE-T/100BASE-TX Terminal blocks: 1 x DC IN, 2 x DC out, 8 x inputs/outputs, 8 x relays, 1 x tamper, 1 x RS-485 (for future use) Cable Size for Connectors: CSA: AWG 28-16, CUL/UL: AWG 30-14 Approvals EN 55022 Class B, EN 50130-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, C-tick AS/NZS CISPR22 Class B, VCCI Class B, IEC/EN/UL 60950-1, UL 294, UL 2043, EN 50581 Languages English, French, Italian, German, and Spanish Operating Temperature -22 to 131 F (-30 to 55 C) Operating Humidity 20-85%, non-condensing Dimensions 14.2 x 11.1 x 5.2" (361 x 282 x 131 mm) Weight 11 lb (5 kg)

0831-001, Модуль Axis A9188-VE (0831-001), AXIS, Аксессуары для видеонаблюдения
