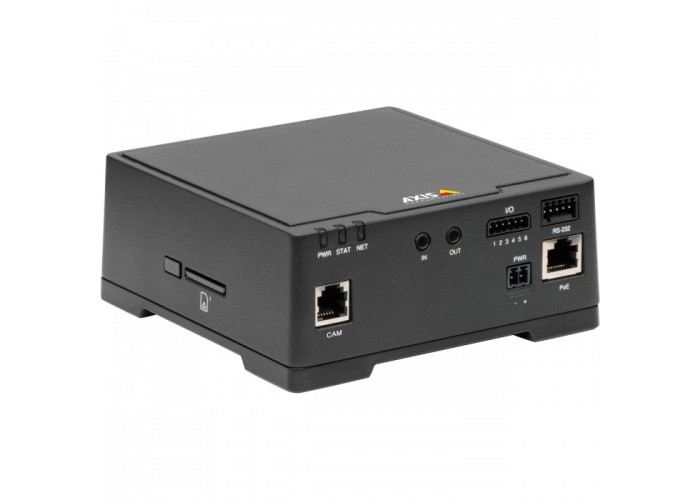

Основной модуль Axis F41 (0658-001)

1-канальный основной блок записи совместимый с оптическими модулями AXIS F Series Sensor Units, HDTV 1080p при 50/60 к/с, WDR, двухстороннее аудио (1 канал), 4 тревожных входа/выхода с 12 В, RS232, NAS, SD/SDHC/SDXC, PoE IEEE 802.3af/802.3at, DC 8-28V, -30 °C до 60 °C.Resolution 1920 x 1200 to 160 x 90 Frame Rate H.264 : 2 streams in 1920x1080 at 30fps 1 stream in 1920x1080 at 60 fps Motion JPEG : 2 streams in 1920x1080 at 30fps 1 stream in 1920x1080 at 30 fps Compression Video : H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High profiles Motion JPEG Audio : AAC 8/16/32 kHz, 8-128 kbit/sAAC LC 8/16/32 kHz, 8-128 kbit/s G.711 PCM 8 kHz 64 kbit/s G.726 ADPCM 8 kHz 32 kbit/s or 24 kbit/s Configurable bit rate Audio 1 x 3.5 mm mic/line in 1 x 3.5 mm line out Alarm Connectors 6-pin Terminal block for 4 configurable inputs/outputs (12 V DC output, max. load 50 mA) Connectors 1 x RJ12 connector for the sensor units 5-pin terminal block RS232 Network Connection Female RJ45 10 BASE-T/100 BASE-TX PoE Supported Protocols IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP,SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, CIFS/SMB, SSH. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit, and cryptographicsoftware written by Eric Young Memory 512 MB RAM, 256 MB Flash Memory Card 1 x SD/HC/XC card slot, supports up to 64 GB Power Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max 7.7 W 8 - 28 VDC, max 7.8 W Approvals ECE R10 rev.04 EN 50121-4, IEC 62236-4 IEC/EN/UL 60950-1 Safety IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-30, IEC 60068-2-60,IEC 60068-2-78, IEC 60529 IP4X IP rating EN 55022 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3 FCC Part 15, Subpart B, Class B ICES-003 Class B VCCI Class B C-Tick AS/NZS CISPR 22 Class BKCC KN22 Class B, KN24 EN 50581 EN 50155 Environmental Operating temperature: -22 to 140 F (-30 to 60 C) Storage temperature: -40 to 149 F (-40 to 65 C) Humidity: 10 to 85%,non-condensing Dimensions 4.1 x 3.0 x 1.1" (10.3 x 7.6 x 3.1 cm) Weight 1.2 lb (520 g)

0658-001, Основной модуль Axis F41 (0658-001), AXIS, Аксессуары для видеонаблюдения
